Manual/ Hydraulic Brinell Hardness Testers
B3000(0)-PC/TS
Introduction

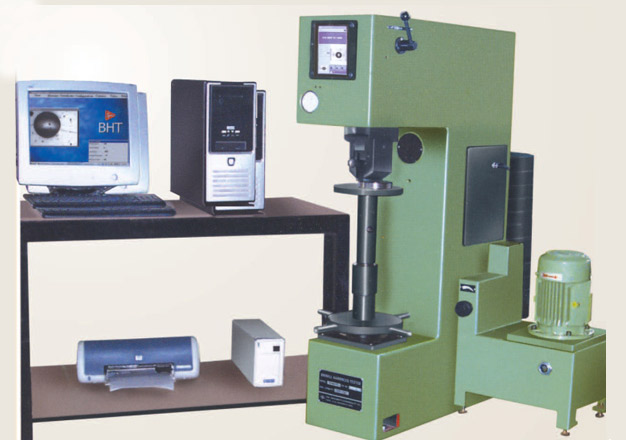

MCS Computerized Fully Automatic Brinell Hardness Tester, is fabricated from steel plates and is designed for precise loading system. It is fully automatic machine for roduction testing. Once the job is placed on testing table and press “Cycle Start” button. The job is raised and brought in contact with clamping device. Then indicator is swivelled and brought in vertical loading position. The loading operation starts. After preset dwelling timer, indenter is swivelled and the image is digitalized using a CCD camera fitted on machine and captured by the PC / Touch screen.
The diameter of indentation is measured by PC and the Brinell Hardness is displayed on monitor with the help of “State of Art” technology software. The job is lowered down and here the auto cycle is over.
Confirms to IS:2281, Bs:10003-2and ASTM E-10.
Fully Automatic Brinell Hardness Testers
B3000(0)-TSA
Features
- Fully Automatic or Touch Screen based Brinell Hardness Tester.
- Direct and accurate measurement of Brinell hardness number using “State of Art” image Processing technology.
- High accuracy and repeatability of measurement at all loads.
- Linux based operating system for touch screen.
- Advance Windows XP based software:
- Latest GUI features with user friendly software.
- On line indication setting and focusing on PC monitor.
- Advance image processing : Algorithms implemented for precise calculations of hardness numbers with various option to cover all ranges of specimen.
- Batch file processing: Option for data/storage and reports generation
- Statistical evalution: Software for calculating standard deviation, mean, medium, frequency distribution graph, variation graph etc. - Calibration mode facility.
"Auto measurement start" from machine.

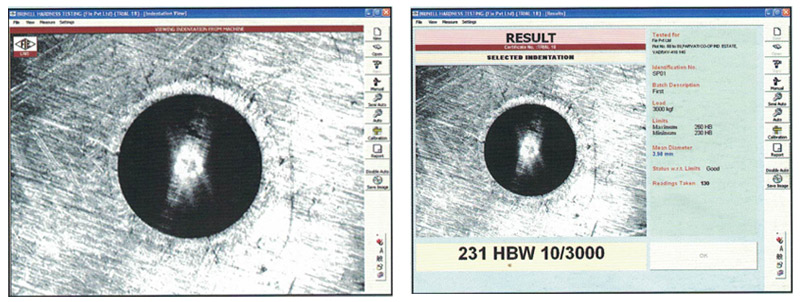

-ts-b3000(0)-tsa.jpg)
TECHNICAL DATA |
||
| Load Range | : | 250 to 3000kgf In steps of 250kgf. |
| Max test height | : | 380 mm |
| Depth of throat | : | 200mm |
| Machine height(approx) | : | 1185mm |
| Net weight (approx) | : | 450kgs |
| Drive power | : | 0.66HP |
| Mains supply | : | 415V, 50Hz, 3Phase |
| Measuring accuracy With CCD camera and built in optics |
: | 0.01 mm |
| Dwell timer | : | 1 to 99 sec. |
| Raising/lowering | : | 240 mm/min |
STANDARD ACCESSORIES |
||
| Testing table 200mmᵩ | : | 1 No. |
| Testing table 70mmᵩ | : | 1 No. |
| Ball holder5 mm | : | 1 No. |
| Ball holder 10mm | : | 1 No. |
| Test block HB 5/750 | : | 1 No. |
| Test block HB 10/3000 | : | 1 No. |
| Allen Spanner | : | 4 Nos. |
| Telescopic cover for Elevating screw protectio | : | 1 Set |
| Induction manual | : | 1 No. |
