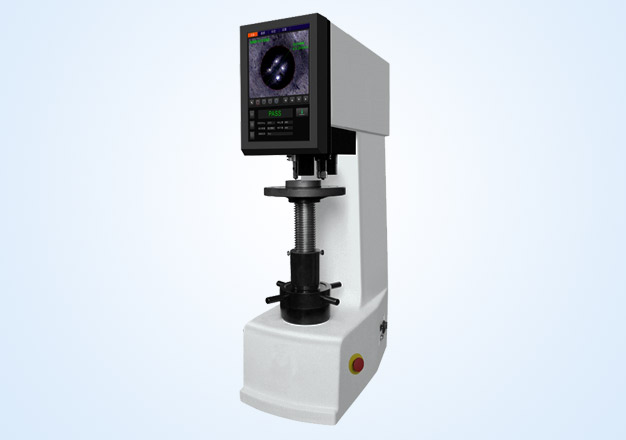

Model: RCB-250-TS
MCS, RCB-250-TS series hardness tester offers quality, durability and an industry leading gauge repeatability and reproduc
Features :
- Fully automatic operation for Rockwell & Brinell.
- Motorized system for applying and removing of load.
- Sophisticated controller with high definition touch screen center.
- Optical depth measuring system for Rockwell.
- High end video based hardness testing firmware, including CCD camera, automatic indent measurement, high definition optical magnification of indent system.
- Password and user level access system. Easy calibration system.
- High / Low - Ok / not ok tolerance indication for hardness valves.
- Automatic weight selection by thumb wheel.
- Huge data storage capacity.
- USB port for data transfer to computer.
- Inbuilt pendrive for data backup.
- Statistical report and analysis.
- Load range Rockwell 60,100,150 Kgf.
- Load range Brinell 187.5, 250 Kgf.
- Conform to IS : 3804, BS-891, ASTM-E-18.
Standard Accessories :
- Built- On microscope with CCD camera, LED light for dark field illumination.
- Objectives for 5X magnification.
- Flat anvil, hardened, cl) 40 mm.
- Vee anvil, hardened, cl) 40mm.
- Fuse 2 Amp (2 pcs ).
- Power cable.
- Factory calibration certificate.
- Installation & user manual.
Optional Accessories :
- Certified hardness test blocks.
- Certified indentors.
- Precision Vices, V-Blocks, & Spl Clamps.
- Long indentors.
- Large testing table 350 x 250 mm (3.78 X 10") with T-slot & spindle adapto
- Custom Testing Table.
- Motorized Y stage for Jominy Testing.
- Motorized X-Y for pattern Testing. Motorized Spindle.
- Closed Loop fully automatic Hardness Testing Machine with Go, No-Go Indicator.
Technical Specifications
| Load application | Motorized loading & unloading. |
| Hardness scales | Rockwell (HR), Brinell (HBW) |
| Loading range | 60 Kgf to 250Kgf. |
| Preload | 10 Kgf. |
| Rockwell Test loads | 60 Kgf, 100 Kgf, 150 Kgf. |
| Rockwell Scales | A, B, C, D, E, F, G, H, K, L, M, P, R, S, V. |
| Brinell Test Loads | 187.5 Kgf, 250 Kgf. |
| Scale resolution (depth) | 0.001mm. |
| Display | High definition industrial touch screen which can be operated by mouse & keyboard |
| Standards | Complies with IS: 3804, BS-891, ASTM-E-18. |
| Test Cycles | Fully Automatic, Load, Dwell, Unload |
| Dwell time | 1-99 seconds |
| Data output / connectivity | USB / Wi-Fi (Optional) |
| Specimen accommodation | 220 mm. |
| Throat | 150 mm. |
| Weight (Approximately) | 110 kg. |
| Operating Temperature Range | 10 ° to 35° C. |
| Operating Humidity Range | 10% to 90% non-conducting. |
| Power supply | 230V AC, 50 Hz, Single Phase |
Loads & Indentors For Hardness Testers For Rockwell & Brinell Tests
Total Load In kgf (Initial Load 10 kgf) |
60 |
100 |
150 |
187.5 |
250 |
Indentor |
Diamond 120° | Ball 1/16" ø | Diamond 120" | Ball 2.5mm ø | Ball 5mm |
Test Scales |
Rockwell A | Rockwell B | Rockwell C | Brinell, F/d2=30 | Brinell F/D2 =10 |
Suitable for |
Tests On Case Hardened Steel | Annealed Ferrous & non ferrous metals | Annealed Deep case Hardened Steel & Tempered Deep | Annealed Steel & Cast Irons | Copper, Copper Alloys & Aluminium alloys |
