Servo-Controlled Front Open Hydraulic (UTES-FLG), Manufacturer, Exporter, India

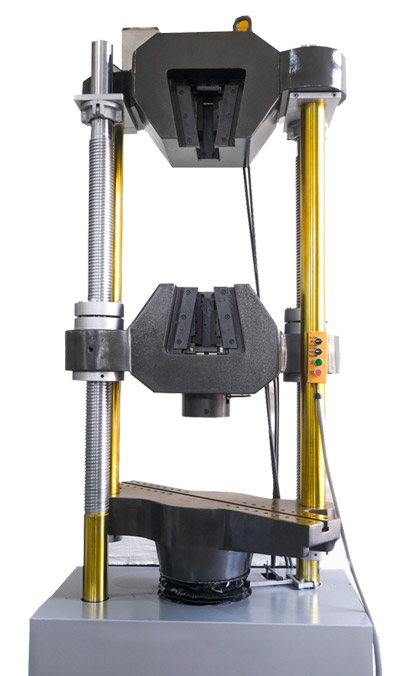

Servo-Controlled Front Open Hydraulic (UTES-FLG) Manufacturer

Model: UTES-FLG

Request a Quote

Open type cross head
Hydraulic wedge action grips with separate power pack
Long test stroke and dual test space
Loading accuracy as high as ± 1%
Straining at variable speeds to suit a wide range of materials.
Printer & PC graphs enable study the behaviour of the material.
Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
Simplicity in reading because of digital readouts.
Wide range of standard and special accessories, including load stabilizer.
Easy change from plain to threaded and screwed specimens.
Large effective clearance between columns enables testing of standards specimens as well as structures.
Simple controls for ease of operation.
Robust straining frame of an extremely rigid construction.
Safe operation ensured by means of safety devices.
Fully enclosed and protected pressure transducer.
RS 232 serial port to transfer data to computer for analysis/ storage evaluation etc.
Manual control & release valve operation.

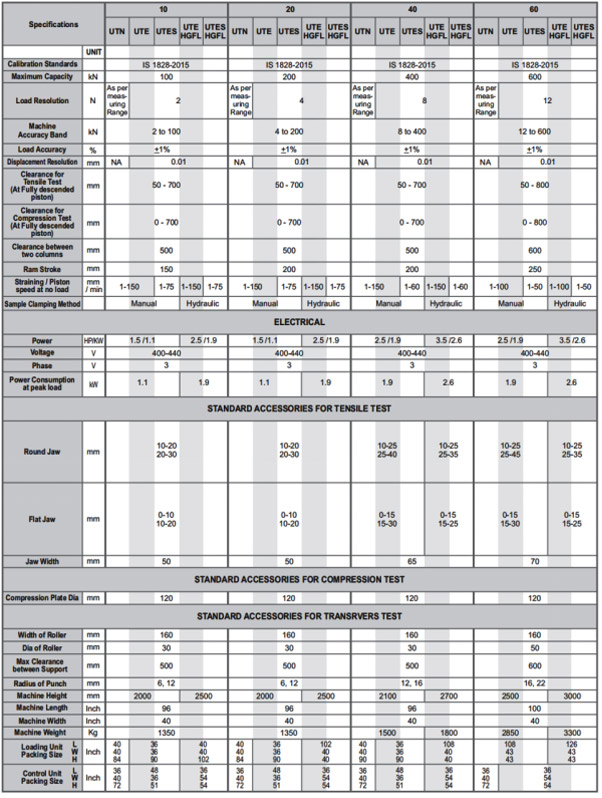

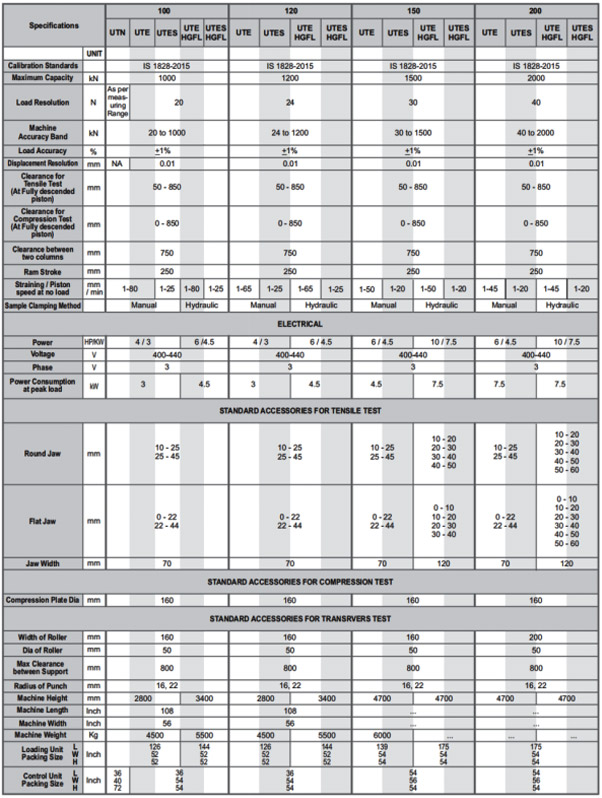

Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN, 1200 kN, 1500 kN & 2000 kN.

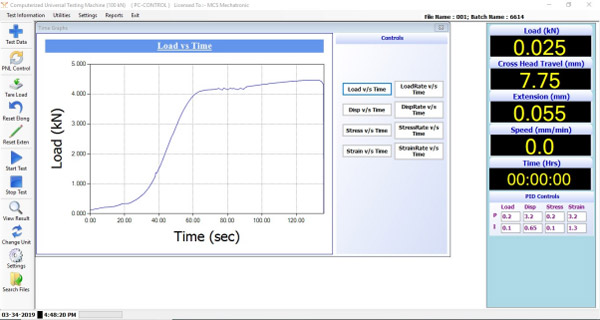

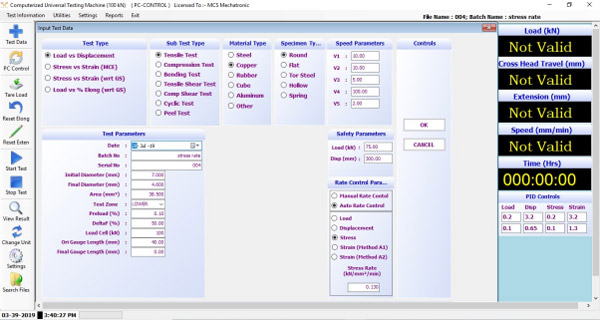

Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare with standard, zooming graph etc.
Report customization as per custom requirements.
Video Extensometer compatible.
R & N value extensometer compatible.
Proof stress calculation from 0.1% to 1%.
Integration of custom sample.
Single point software calibration.
Facility to export data to PDF, EXCEL & CSV formats.
Unit selection for Real time Graph.
Unlimited Test in single batch file.
