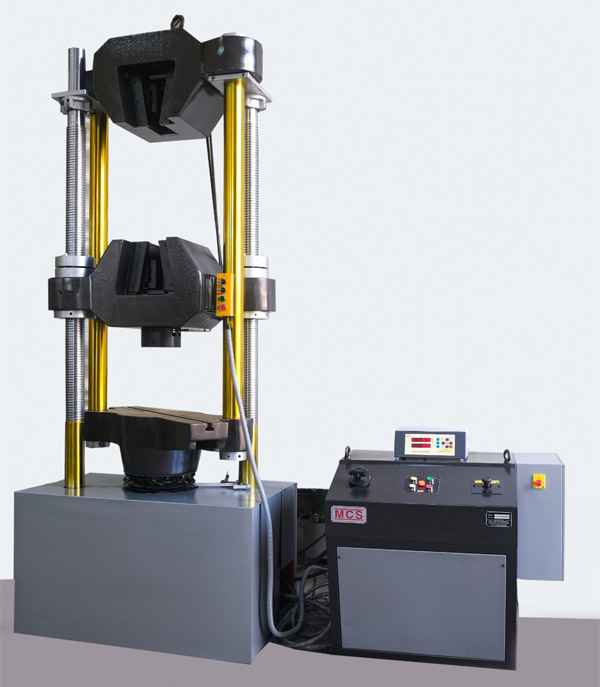

Front Open Hydraulic Grip (UTE-FLG) Manufacturer
Model: UTE-FLG
We are Manufacturer, Supplier, Exporter of Front Open Hydraulic Grip (UTE-FLG) is situated in Kolhapur, Maharashtra, India.
Front Open Hydraulic Grip (UTE-FLG)
- Open type cross head
- Hydraulic wedge action grips with separate power pack
- Long test stroke and dual test space
- Loading accuracy as high as ± 1%
- Straining at variable speeds to suit a wide range of materials.
- Printer & PC graphs enable study the behaviour of the material.
- Motor driven threaded columns for quick effortless adjustment of lower cross-head-to facilitate rapid fixing of test specimen.
- Simplicity in reading because of digital readouts.
- Wide range of standard and special accessories, including load stabilizer.
- Easy change from plain to threaded and screwed specimens.
- Large effective clearance between columns enables testing of standards specimens as well as structures.
- Simple controls for ease of operation.
- Robust straining frame of an extremely rigid construction.
- Safe operation ensured by means of safety devices.
- Fully enclosed and protected pressure transducer.
- RS 232 serial port to transfer data to computer for analysis/ storage evaluation etc.
- Manual control & release valve operation.
- Load Capacity : 100 kN, 200 kN, 400 kN, 600 kN, 1000 kN, 1200 kN, 1500 kN & 2000 kN.
Windows Based Software Feature
- Online graph on PC, Data analysis, Statistics, Point tracing, superimposing graphs to compare with standard, zooming graph etc.
- Report customization as per custom requirements.
- Video Extensometer compatible.
- R & N value extensometer compatible.
- Proof stress calculation from 0.1% to 1%.
- Integration of custom sample.
- Single point software calibration.
- Facility to export data to PDF, EXCEL & CSV formats.
- Unit selection for Real time Graph.
- Unlimited Test in single batch file.
