Digital & Automatic Spring Tester Supplier for Bangladesh
MCS Mechatronic manufactures digital and automatic spring testing machines in Kolhapur, India, and supplies them to spring makers, automotive suppliers, railway workshops and engineering colleges in Bangladesh. The machines measure force against deflection on tension, compression, coil and leaf springs, and report peak force and spring rate.
Bangladesh has one of South Asia's fastest-growing steel and construction sectors. Rebar and re-rolling mills around Chattogram and Dhaka, mega infrastructure projects and BSTI product standards all require routine material testing, and engineering universities are expanding their labs. Every spring maker needs load-deflection checks on each batch, and MCS covers that need from benchtop testers to 50-tonne leaf spring machines.
Choose Your Spring Tester: Digital or Automatic
Buyers in Bangladesh usually choose between the benchtop digital tester for small springs and the automatic tester for production and heavy springs.
Digital Spring Testing Machine
MCS-STM20 / STM200 / STM500
Benchtop tester with twin hard-chrome columns, a precision load cell and a microprocessor display for tension and compression springs.
- Force accuracy ±1% of indicated load or 0.5% of full load
- Interchangeable load cells
- Digital vernier (0.01 mm) or rotary encoder displacement
- Optional printer and RS-232 PC interface
- Manual hand wheel or motorised loading

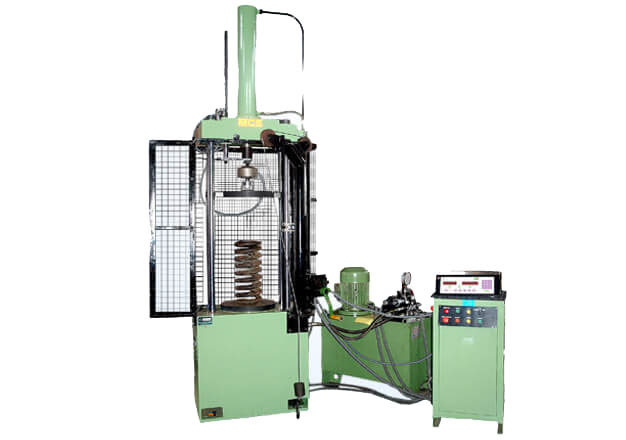

Automatic Spring Testing Machine
MCS-STM automatic / hydraulic
Automatic tester with precise speed control and software that logs and graphs force vs deflection; hydraulic models handle laminated and coil springs up to 50 tonnes.
- Load resolution 1/20000; deflection resolution 0.01 mm
- Speed control from 0.1 to 500 mm/min
- Peak force and average spring rate display
- Hydraulic models from 6 to 50 tonnes
- Loading accuracy within ±1%
Digital vs Automatic Spring Tester
| Feature | Digital Spring Tester | Automatic Spring Tester |
|---|---|---|
| Loading | Hand wheel or motorised | Automatic, 0.1 – 500 mm/min |
| Displacement | Digital vernier or encoder | Rotary encoder, magnetic or glass scale |
| Capacity | Light springs (benchtop) | Up to 50 t (hydraulic models) |
| Typical fit | Small springs, colleges, QC benches | Spring production, railway and leaf springs |
Spring Testing Machine Specifications
| Digital models | MCS-STM20, STM200, STM500 benchtop testers |
| Automatic / hydraulic models | Capacities from 6 to 50 tonnes for laminated and coil springs |
| Force accuracy | ±1% of indicated load (digital: or 0.5% of full load, whichever is higher) |
| Load resolution | 1/20000 (automatic models) |
| Deflection resolution | 0.01 mm (automatic); 0.1 mm least count on hydraulic models |
| Speed control | 0.1 to 500 mm/min |
| Software | Force vs deflection logging and graphing, peak force and spring rate |
Full data is on the digital spring tester and automatic spring tester pages.
Spring Testing Machine Models
Spring Tester Applications in Bangladesh
Our machines are used by steel rebar and re-rolling mills, cement and construction material producers, engineering universities, light engineering workshops and testing laboratories. Typical Bangladeshi applications include:
Spring manufacturers
Load-deflection and free-length checks on every batch
Automotive suppliers
Valve, clutch, suspension and seat springs
Railway workshops
Laminated and coil springs on hydraulic models
Electrical and switchgear
Small compression and tension springs in contacts and breakers
Engineering colleges
Spring rate experiments in mechanics labs
Incoming inspection
Verifying bought-out springs against drawings
Testing Standards Supported
MCS spring testers measure force to ±1% of the indicated load and display deflection to 0.01 mm, giving the load-deflection and spring rate data that spring drawings and customer specifications call for.
In Bangladesh, product conformity is overseen by BSTI (Bangladesh Standards and Testing Institution), and laboratories that issue accredited reports work under BAB (Bangladesh Accreditation Board). The MCS spring testing software logs force against deflection and plots the graph, so each batch can be reported to your customer.
Cities We Serve in Bangladesh
We supply spring testing machines to industrial cities and project sites across Bangladesh, including:
Export, Shipping & Support for Bangladesh
Export Packing & Shipping
Machines are packed in seaworthy export cases and shipped from India to Chattogram Port and Mongla Port.
Export Documents
Commercial invoice, packing list, certificate of origin and the machine's calibration certificate are supplied with every shipment.
Online Training & Support
Online operator training on the machine and its software, with remote technical support from our team in India.
Frequently Asked Questions
Do you export spring testing machines to Bangladesh?
Yes. MCS Mechatronic manufactures digital and automatic spring testing machines in Kolhapur, India, and exports them to Bangladesh through ports such as Chattogram Port and Mongla Port.
What is the difference between the digital and the automatic spring tester?
The digital tester is a benchtop machine with hand wheel or motorised loading for light springs. The automatic tester adds speed control from 0.1 to 500 mm/min, 0.01 mm deflection resolution and software graphs, and hydraulic versions handle heavy coil and leaf springs up to 50 tonnes.
Can the machine test both tension and compression springs?
Yes. Both the digital and the automatic testers handle tension and compression springs.
Do you have machines for leaf springs?
Yes. Hydraulic models from 6 to 50 tonnes test laminated (leaf) and coil springs, with load on a large dial and deflection on a digital display.
Can MCS machines support testing to BSTI standards?
BSTI standards for steel and building materials follow ISO and ASTM methods. MCS spring testers measure force to ±1% of the indicated load, and force-deflection results and spring rate can be logged for your BSTI or client records. We supply the technical documents your importer needs for customs clearance.
Can the machine run on the power supply used in Bangladesh?
The supply voltage depends on the model. Bangladesh's three-phase supply is 400 V at 50 Hz, so please mention your site voltage and frequency in your enquiry so we can confirm the right electrical configuration.
Get a Spring Tester Quotation for Bangladesh
Tell us the spring type, maximum load, free length and deflection, and we will recommend the right model.
