Creep & Stress Relaxation Tester Supplier for the UAE
MCS Mechatronic manufactures computerized creep and stress relaxation testing machines in Kolhapur, India, and supplies them to power plant, refinery, aerospace and university labs in the UAE. The machines hold a specimen under load at high temperature for up to 10,000 hours and record how it stretches or how its stress relaxes over time.
The UAE combines heavy local industry with its role as the Gulf's trading hub. Steel and aluminium production, oil and gas services, large infrastructure projects and a dense network of accredited testing laboratories keep demand for testing equipment high, and many machines bought in Dubai and Abu Dhabi are re-exported to the wider Gulf and Africa. Long-term creep data decides the safe life of boiler tubes, turbine parts and pressure equipment at service temperature.
Choose Your Machine: Creep or Stress Relaxation
The dedicated creep tester suits long-term creep and rupture work, while the electromechanical stress relaxation machine also performs hot tensile and compression tests.

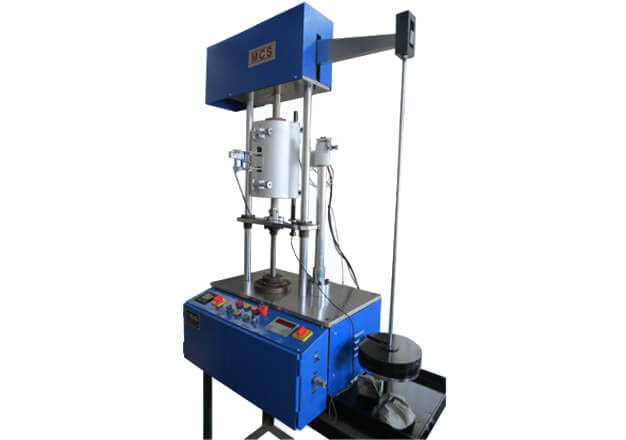

High Temperature Creep Testing Machine
Servo-motor lever type
Creep and relaxation tester with servo-motor ball-screw loading and a motorised draw-head that compensates for specimen elongation.
- Capacity 10 kN to 100 kN, resolution 1/25000
- Load accuracy ±0.5%
- Lever ratio 1:10 or 1:20
- Three-zone furnace, 100 to 1000 °C
- Extension resolution 0.001 mm
Computerized Stress Relaxation & Creep Testing Machine
Electromechanical, 1 – 200 kN
Electromechanical machine for stress relaxation, creep and hot tensile tests on metals, polymers, rubbers and composites.
- Capacity 1 kN to 200 kN, 0.5% accuracy
- Holding duration 1 to 10,000 hours
- Test temperature 200 to 1200 °C
- Speed 0.01 to 500 mm/min
- Alignment verified as per ASTM E1012
Creep Tester vs Stress Relaxation Machine
| Feature | Creep Testing Machine | Stress Relaxation & Creep Machine |
|---|---|---|
| Capacity | 10 – 100 kN | 1 – 200 kN |
| Loading | Servo motor, ball screw, lever 1:10 / 1:20 | Electromechanical |
| Temperature | 100 – 1000 °C (furnace up to 1200 °C) | 200 – 1200 °C |
| Load accuracy | ±0.5% | 0.5% |
| Also performs | Creep and relaxation | Hot tensile, compression, creep |
Creep & Stress Relaxation Specifications
| Capacity | 10 – 100 kN (creep tester); 1 – 200 kN (stress relaxation machine) |
| Load accuracy | ±0.5% |
| Temperature | Up to 1200 °C with SS304 split furnace, single or three zone |
| Test duration | 1 to 10,000 hours |
| Extension measurement | High-temperature creep extensometer; 0.001 mm resolution |
| Software | Load, temperature, strain and stress vs time graphs; automatic % elongation |
| Standards | ASTM E139 and ASTM E292; alignment as per ASTM E1012 |
Full data is on the creep testing machine and stress relaxation machine pages.
Creep Testing Equipment
Creep Testing Applications in the UAE
Our machines are used by steel and aluminium producers, oil and gas service companies, construction material labs, cable and fastener makers, inspection agencies and universities. Typical UAE applications include:
Power generation
Creep life of boiler tubes, headers and turbine materials
Refineries and petrochemicals
Furnace tubes and pressure parts at service temperature
Fasteners and springs
Stress relaxation of high-temperature bolting and springs
Aerospace and alloys
Creep of superalloys and titanium alloys
Polymers and rubbers
Long-term creep and relaxation of plastics and elastomers
Universities and research
Material qualification and life studies
Testing Standards Supported
MCS creep and stress relaxation testing machines test to ASTM E139 and ASTM E292, with load-train alignment verified as per ASTM E1012. The electromechanical machine can also perform hot tensile tests as per ASTM E21.
In the UAE, product conformity is overseen by the Ministry of Industry and Advanced Technology (MoIAT), and laboratories that issue accredited reports work under EIAC (Emirates International Accreditation Centre). The software plots load, temperature, strain and stress against time and calculates percentage elongation automatically.
Cities We Serve in the UAE
We supply creep & stress relaxation testing machines to industrial cities and project sites across the UAE, including:
Export, Shipping & Support for the UAE
Export Packing & Shipping
Machines are packed in seaworthy export cases and shipped from India to Jebel Ali Port, Khalifa Port, Abu Dhabi and Port Khalid, Sharjah.
Export Documents
Commercial invoice, packing list, certificate of origin and the machine's calibration certificate are supplied with every shipment.
Online Training & Support
Online operator training on the machine and its software, with remote technical support from our team in India.
Frequently Asked Questions
Do you export creep testing machines to the UAE?
Yes. MCS Mechatronic manufactures creep and stress relaxation testing machines in Kolhapur, India, and exports them to the UAE through ports such as Jebel Ali Port and Khalifa Port, Abu Dhabi.
What is the difference between creep and stress relaxation testing?
A creep test holds a constant load at high temperature and measures how the specimen extends over time. A stress relaxation test holds a constant strain and measures how the stress falls over time. MCS machines can perform both.
How long can a test run?
Holding duration can range from 1 hour to 10,000 hours, with continuous temperature and strain measurement.
Which standards are followed?
Creep and relaxation testing conforms to ASTM E139 and ASTM E292, and alignment is verified as per ASTM E1012.
Can MCS machines support testing to UAE requirements?
UAE conformity rules under MoIAT reference international ISO and ASTM methods. MCS creep and stress relaxation machines test to ASTM E139 and ASTM E292, and the software's load, strain, temperature and time graphs can be reported for your MoIAT or client records. We supply the technical datasheet and documents your importer needs for customs clearance.
Can the machine run on the power supply used in the UAE?
The supply voltage depends on the model. The UAE's three-phase supply is 400 V at 50 Hz, so please mention your site voltage and frequency in your enquiry so we can confirm the right electrical configuration.
Get a Creep Tester Quotation for the UAE
Tell us the materials, loads, temperatures and test durations you need, and we will recommend the right machine.
