Vickers cum Brinell Hardness Tester Supplier for the UAE
MCS Mechatronic manufactures touch screen Vickers cum Brinell hardness testers in Kolhapur, India, and supplies them to steel, forging, heat-treatment and component labs in the UAE. One machine performs both Vickers and Brinell tests, with dead-weight loading and indentation measurement on a built-in touch screen.
The UAE combines heavy local industry with its role as the Gulf's trading hub. Steel and aluminium production, oil and gas services, large infrastructure projects and a dense network of accredited testing laboratories keep demand for testing equipment high, and many machines bought in Dubai and Abu Dhabi are re-exported to the wider Gulf and Africa. For labs that need both methods, a combined tester saves bench space and the cost of a second machine.
MCS Vickers cum Brinell Tester Range
The MVM series covers both methods; the Brinell touch screen model is available for Brinell-only labs.

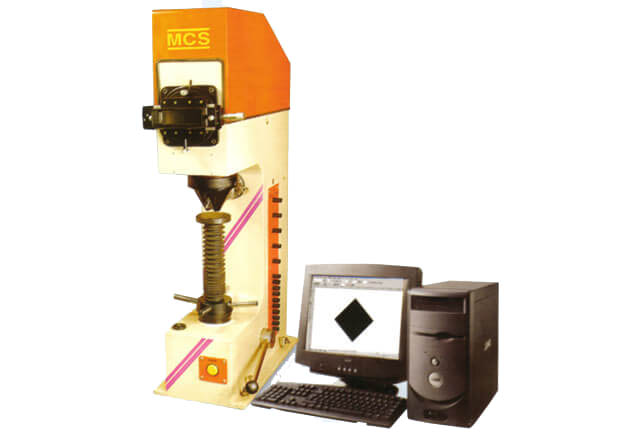

Touch Screen Vickers cum Brinell Hardness Tester
MVM-120 / MVM-120 S / MVM-250 / MVM-250 S
Measures both Vickers and Brinell hardness in one machine, with auto and manual result modes.
- Load range 5 kg to 250 kg
- Load accuracy ±1%
- Dead-weight loading, push-knob load selection
- Automatic swivelling objective lens
- Industrial touch screen; PDF export
Brinell Touch Screen Hardness Tester
Brinell TS
Touch screen Brinell tester from the same series for labs that only need Brinell testing.
- Touch screen indentation measurement
- Built for accuracy and long-term stability
- Simple push-button loading cycle
Vickers cum Brinell Tester Specifications
| Models | MVM-120, MVM-120 S, MVM-250, MVM-250 S |
| Load range | 5 kg to 250 kg, dead-weight loading |
| Load accuracy | ±1% |
| Measurement | Indentation diagonal / diameter on built-in touch screen; auto and manual modes |
| Vickers standards | IS 1754 and BS 427 |
| Brinell standards | IS 2281, BS 240 and ASTM E10 |
Full data is on the Vickers cum Brinell hardness tester page.
Vickers & Brinell Test Indentations
Vickers cum Brinell Tester Applications in the UAE
Our machines are used by steel and aluminium producers, oil and gas service companies, construction material labs, cable and fastener makers, inspection agencies and universities. Typical UAE applications include:
Steel and alloy labs
Vickers and Brinell hardness from one bench
Forging and heat treatment
Brinell on forgings, Vickers on hardened surfaces
Automotive components
Hardness of gears, shafts and castings
Welding qualification
Vickers hardness surveys across welds
Non-ferrous metals
Brinell checks on aluminium and copper alloys
Universities
Teaching both hardness methods on one machine
Testing Standards Supported
MCS Vickers cum Brinell testers conform to IS 1754 and BS 427 for Vickers and IS 2281, BS 240 and ASTM E10 for Brinell testing.
In the UAE, product conformity is overseen by the Ministry of Industry and Advanced Technology (MoIAT), and laboratories that issue accredited reports work under EIAC (Emirates International Accreditation Centre). Results can be exported to PDF for your lab records and customer reports.
Cities We Serve in the UAE
We supply vickers cum brinell hardness testers to industrial cities and project sites across the UAE, including:
Export, Shipping & Support for the UAE
Export Packing & Shipping
Machines are packed in seaworthy export cases and shipped from India to Jebel Ali Port, Khalifa Port, Abu Dhabi and Port Khalid, Sharjah.
Export Documents
Commercial invoice, packing list, certificate of origin and the machine's calibration certificate are supplied with every shipment.
Online Training & Support
Online operator training on the machine and its software, with remote technical support from our team in India.
Frequently Asked Questions
Do you export Vickers cum Brinell hardness testers to the UAE?
Yes. MCS Mechatronic manufactures Vickers cum Brinell hardness testers in Kolhapur, India, and exports them to the UAE via ports such as Jebel Ali Port and Khalifa Port, Abu Dhabi.
Can one machine really do both Vickers and Brinell tests?
Yes. The MVM series measures both Vickers and Brinell hardness in one machine, with loads from 5 to 250 kg selected by a push knob.
How is the indentation measured?
After the indentation is made, the objective lens swivels into position automatically and the image appears on the front touch screen, where the diagonal or diameter is measured.
Which standards do MCS Vickers cum Brinell testers meet?
They conform to IS 1754 and BS 427 for Vickers testing, and IS 2281, BS 240 and ASTM E10 for Brinell testing.
Can MCS machines support testing to UAE requirements?
UAE conformity rules under MoIAT reference international ISO and ASTM methods. MCS Vickers cum Brinell testers conform to IS 1754 and BS 427 for Vickers and IS 2281, BS 240 and ASTM E10 for Brinell, and results can be exported to PDF for your MoIAT or client records. We supply the technical datasheet and documents your importer needs for customs clearance.
Can the machine run on the power supply used in the UAE?
The supply voltage depends on the model. The UAE's three-phase supply is 400 V at 50 Hz, so please mention your site voltage and frequency in your enquiry so we can confirm the right electrical configuration.
Get a Hardness Tester Quotation for the UAE
Tell us the materials, test loads and methods you need, and we will recommend the right model.
