Computerized Brinell Hardness Tester Supplier for the UAE
MCS Mechatronic manufactures computerized and fully automatic Brinell hardness testers in Kolhapur, India, and exports them to foundries, forging shops, steel plants and casting buyers in the UAE. A CCD camera captures each indentation and the software measures its diameter, so the Brinell number is calculated without manual microscope readings.
The UAE combines heavy local industry with its role as the Gulf's trading hub. Steel and aluminium production, oil and gas services, large infrastructure projects and a dense network of accredited testing laboratories keep demand for testing equipment high, and many machines bought in Dubai and Abu Dhabi are re-exported to the wider Gulf and Africa. Brinell testing is the standard hardness check for castings, forgings and coarse-grained metals, where a large indentation gives a representative result.
MCS Brinell Hardness Tester Range
Choose a fully automatic model for production lines or a manual / hydraulic model for lower volumes.

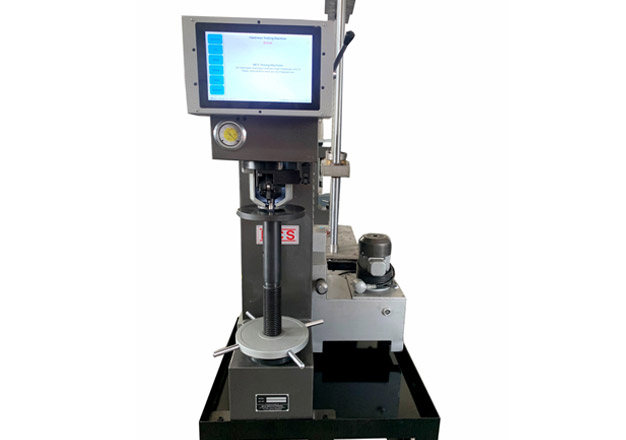

Computerized Fully Automatic Brinell Hardness Tester
B3000(0)-PC / TS / TSA
One-button auto cycle: the job is clamped, loaded, and the indentation is imaged and measured automatically on a PC or touch screen.
- Load range 250 to 3000 kgf in steps of 250 kgf
- CCD camera with image-processing measurement
- PC or touch screen versions
- High accuracy and repeatability at all loads
- Built for production testing

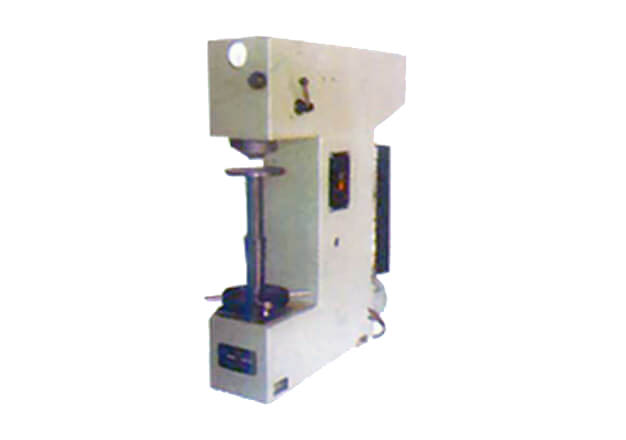

Manual / Hydraulic Brinell Hardness Tester
Analogue and hydraulic models
Robust hydraulic Brinell tester for workshops and foundries that test fewer parts per shift.
- Hydraulic loading system
- Suits castings and forgings
- Simple operation for shop-floor use
- Economical entry into Brinell testing
Automatic vs Manual Brinell Tester
| Feature | Fully Automatic | Manual / Hydraulic |
|---|---|---|
| Measurement | CCD camera, automatic diameter measurement | Manual indentation measurement |
| Cycle | Automatic clamp, load, dwell, measure | Operator controlled |
| Typical fit | Foundry and forging production lines | Workshops and lower volumes |
Brinell Hardness Tester Specifications
| Load range | 250 to 3000 kgf in steps of 250 kgf |
| Measurement | CCD camera with image-processing software on PC or touch screen |
| Operation | Fully automatic cycle with preset dwell timer (automatic models) |
| Standards | Conforms to IS:2281, BS EN 10003-2 and ASTM E10 |
Full model data is on the Brinell hardness tester page.
Brinell Hardness Tester Models
Brinell Tester Applications in the UAE
Our machines are used by steel and aluminium producers, oil and gas service companies, construction material labs, cable and fastener makers, inspection agencies and universities. Typical UAE applications include:
Foundries
Hardness of grey iron, SG iron and steel castings
Forging shops
Hardness of forged and heat-treated parts
Steel plants
Hardness of billets, bars and plates
Aluminium and non-ferrous
Brinell checks on extrusions and alloy castings
Automotive suppliers
Hardness of brake drums, hubs and housings
Inspection agencies
Third-party hardness verification for buyers
Testing Standards Supported
MCS Brinell hardness testers conform to IS:2281, BS EN 10003-2 and ASTM E10, the Brinell methods specified for most castings and forgings.
In the UAE, product conformity is overseen by the Ministry of Industry and Advanced Technology (MoIAT), and laboratories that issue accredited reports work under EIAC (Emirates International Accreditation Centre). Measured results are stored by the software and can be printed or saved for your lab records and customer reports.
Cities We Serve in the UAE
We supply brinell hardness testers to industrial cities and project sites across the UAE, including:
Export, Shipping & Support for the UAE
Export Packing & Shipping
Machines are packed in seaworthy export cases and shipped from India to Jebel Ali Port, Khalifa Port, Abu Dhabi and Port Khalid, Sharjah.
Export Documents
Commercial invoice, packing list, certificate of origin and the machine's calibration certificate are supplied with every shipment.
Online Training & Support
Online operator training on the machine and its software, with remote technical support from our team in India.
Frequently Asked Questions
Do you export Brinell hardness testers to the UAE?
Yes. MCS Mechatronic manufactures computerized and automatic Brinell hardness testers in Kolhapur, India, and exports them to the UAE via ports such as Jebel Ali Port and Khalifa Port, Abu Dhabi.
How does the automatic Brinell tester measure the indentation?
After the preset dwell, a CCD camera fitted on the machine captures the indentation and the software measures its diameter and displays the Brinell hardness number on the PC or touch screen.
What load range is available?
The computerized models apply 250 to 3000 kgf in steps of 250 kgf, covering standard Brinell tests on steel, cast iron and non-ferrous metals.
Is the automatic model suitable for foundry production?
Yes. The operator places the job and presses Cycle Start; clamping, loading, measurement and lowering run automatically, which suits high-volume foundry and forging testing.
Can MCS machines support testing to UAE requirements?
UAE conformity rules under MoIAT reference international ISO and ASTM methods. MCS Brinell testers conform to IS:2281, BS EN 10003-2 and ASTM E10, and the image-measured results can be saved for your MoIAT or client records. We supply the technical datasheet and documents your importer needs for customs clearance.
Can the machine run on the power supply used in the UAE?
The supply voltage depends on the model. The UAE's three-phase supply is 400 V at 50 Hz, so please mention your site voltage and frequency in your enquiry so we can confirm the right electrical configuration.
Get a Brinell Tester Quotation for the UAE
Tell us the parts, sizes and daily test volume, and we will recommend the right Brinell model.
